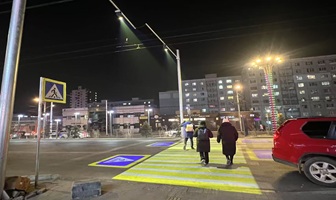

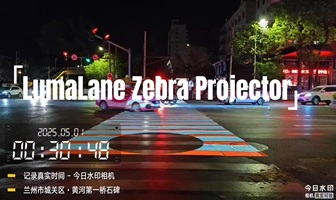

The LumaLane Zebra Projector is an innovative traffic safety device that uses high-intensity LED lighting and precision optics to project a clear, bright virtual zebra crossing onto road surfaces, significantly enhancing pedestrian visibility and safety where traditional painted markings are insufficient. Engineered for durability with weatherproof IP65-rated housings, these projectors are designed to cut through darkness, rain, and headlight glare, ensuring crosswalks are unmissable in low-light conditions. Ideal for urban streets, school zones, and industrial settings like warehouses with forklift traffic, they offer a versatile, low-maintenance alternative to paint, with features like easy installation, customizable patterns, and long-lasting LED lifespans of up to 60,000 hours.
Key Features
Traffic System Integration: Engineered for synchronized operation with traffic control systems and compatible with standard traffic light interfaces, featuring adjustable pattern playback (0-255S).
Extreme Durability & Weather Resistance: Boasts an IP65 rating and operates in a wide ambient temperature range (-60°C to +50°C) with comprehensive electrical protections (Level 4 surge/ESD, overcurrent, overvoltage).
High-Intensity Light Output: Delivers powerful illumination with a 1000W light source, generating a luminous flux of 26,000-38,000 LM for long-distance projection (1-16 meters).
Superior Optical Performance: Features a 6-element Ultra HD optical lens, high CRI (Ra>95), and a specific 448-455nm wavelength, ensuring crisp and accurate color projection.
Robust & Secure Build: Constructed with a durable aluminum alloy housing and includes critical safety features such as lightning protection and leakage protection for reliable operation in demanding environments.
