Overview

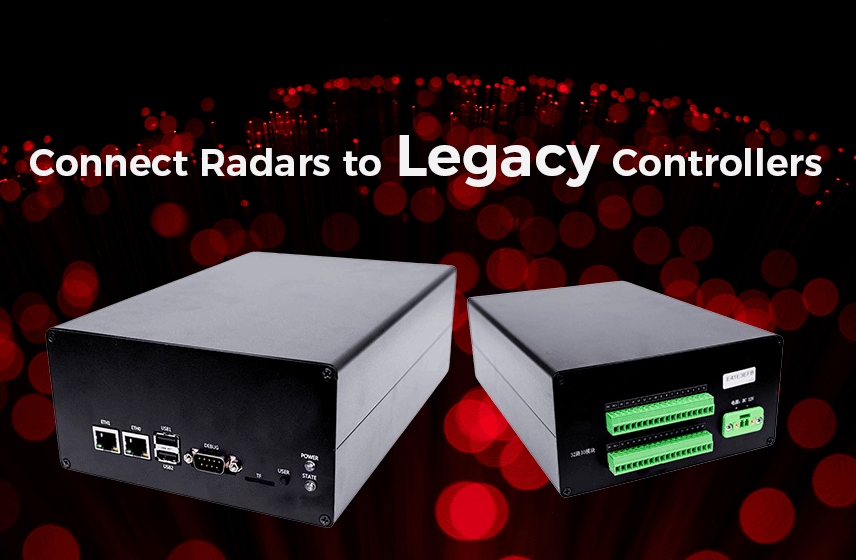

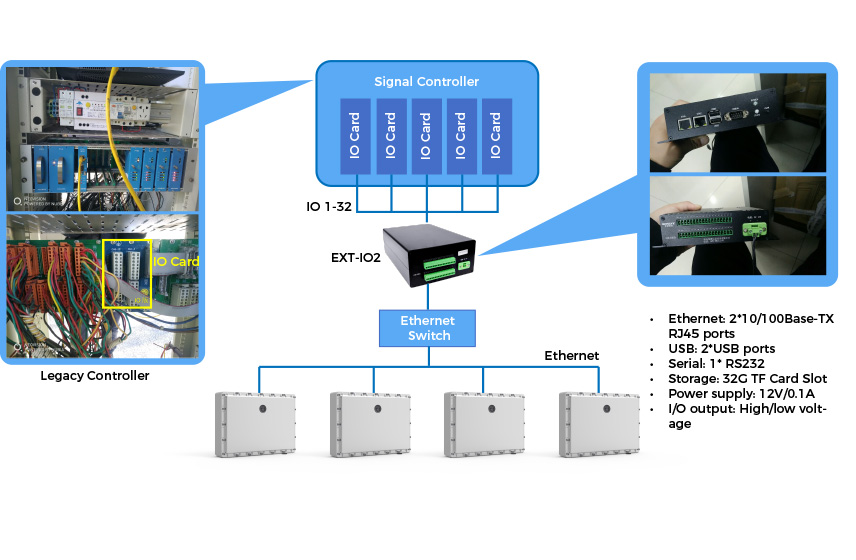

The EXT-IO2 is a digital I/O interface box designed for ClairWav radar systems, specifically for urban intersection data aggregation and processing. It seamlessly connects platform and traffic signal controller requirements, supporting integration of up to 8 radars. The device converts Ethernet data from radars into traditional IO inputs required by signal controllers, offering flexible support for both 16-channel and 32-channel IO output configurations.

 Key Features

• Ethernet: 2*10/100Base-TX RJ45 ports
• USB: 2*USB ports
• Serial: 1* RS232
• Storage: 32G TF Card Slot
• Power supply: 12V/0.1A
• I/O output: High/low voltage
