Landslides, collapses, and dam failures can happen in seconds, but the warning signs often appear long before. The challenge? Detecting those millimeter-level changes across vast, complex terrain—in rain, fog, or darkness.

Enter the ClairWav-SD1K slope deformation monitoring radar.

Designed for large-area applications (slopes, mountains, reservoir dams, rockfill dams), this system delivers real-time, sub-millimeter precision on displacement, deformation, and crack propagation.

🔹 Key highlights:

• Millimeter-wave radar – captures tiny shifts across a wide field of view
• All-weather, continuous monitoring – reliable updates even in harsh conditions
• 500m range – one scan covers hundreds of meters
• Multi-variable detection – deformation, displacement, and cracks simultaneously
• Automatic analysis & alerts – no manual intervention needed
• Easy deployment – works in complex terrain

🔹 How it works?

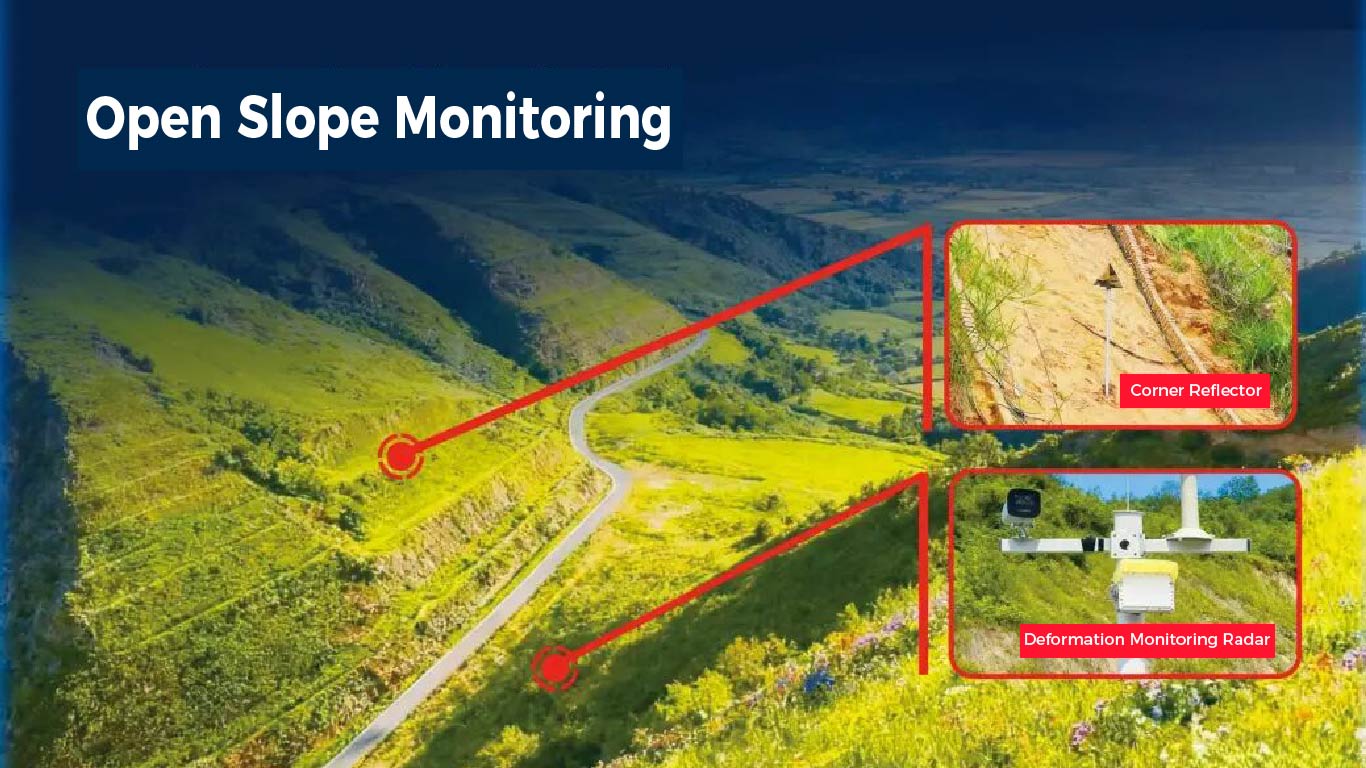

By tracking changes in relative position between the radar and corner reflectors, the system instantly flags any shift or disappearance—triggering an alert before failure occurs.

🔹 Deployment made simple:

• Install radars in opposite-facing pairs (distance to slope > slope length)
• Place corner reflectors every 10–35m

🔹 Specs that matter:

• Max distance: 500m
• Monitoring angle: Horizontal ±50°, Vertical ±8°
• Ranging accuracy: ≤1mm
• Data rate: 1 fps

If your work involves slope stability, dam safety, or early warning for geohazards, the ClairWav-SD1K turns invisible movement into actionable intelligence.
